Z92

FINISHING: AISI 304 satin-finish scotch- brite steel
THICKNESS: 1,5 mm
CLOSING SYSTEM: Nex T handle in AISI 304 stainless steel
HNGES MATERIAL: Nylon
PRODUCTION PROCESS: Laser cut, bending, TIG / laser welding

Description

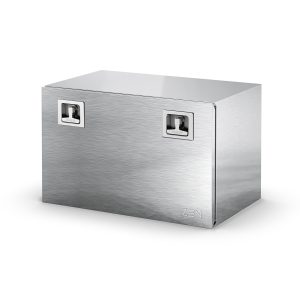

Satin-finish scoth-brite steel toolbox, equipped with NexT steel handle. The satin finish lends a touch of elegance while hiding wear and tear.

Steel Line
Accessories and spare partsPallet BoxRetrocabRiveted Tool BoxesTool BoxesTranspallet Box

Code	LxHxD external dim. (mm)	Thickness (mm)	Weight (kg)	Handles N°	Capacity (Lt)
8Z9200	400x300x300	1,5	8,9	1	32
8Z9201	400x600x600	1,5	21,9	1	129
8Z9202	450x450x450	1,5	16,4	1	82
8Z9203	490x450x450	1,5	17,8	1	89
8Z9210	500x350x400	1,5	14,6	1	63
8Z9211	500x600x600	1,5	24,9	1	162
8Z9220	600x400x500	1,5	22,3	1	108
8Z9221	600x600x600	1,5	27,9	1	194
8Z9222	600x500x500	1,5	24,0	1	140
8Z9240	800x500x500	1,5	28,1	2	180
8Z9241	800x500x600	1,5	28,3	2	216
8Z9242	800x600x500	1,5	31,4	2	216
8Z9243	800x600x600	1,5	34,6	2	259
8Z9260	1000x500x500	1,5	33,4	2	225
8Z9261	1000x500x600	1,5	36,5	2	270
8Z9262	1000x600x500	1,5	36,8	2	270
8Z9263	1000x600x600	1,5	40,6	2	324
8Z9280	1200x500x500	1,5	38,6	2	270
8Z9281	1200x600x600	1,5	46,8	2	388
8Z9290	1450x500x500	1,5	45,1	2	326
8Z9291	1450x600x600	1,5	54,5	2	469

Dimension (in) WxHxD	Weight (lbs) Thickness 16 gauge	Weight (lbs) Thickness 14 gauge	Handles N°	Capacity (gal)
18x18x18	35	47	1	23
24x18x18	43	57	1	30
30x18x18	51	68	2	38
36x18x18	59	78	2	45
48x18x18	74	99	2	61
24x24x18	52	69	1	40
36x24x18	70	93	2	61
48x24x18	88	117	2	81
60x24x118	106	141	2	101
24x24x24	61	82	1	54
36x24x24	82	109	2	81
48x24x24	102	136	2	108
60x24x24	123	164	2	135
72x24x18	124	165	2	121
72x24x24	143	190	2	162
