Z78
![](https://www.daken.it/wp-content/uploads/2021/05/8Z7810-2-300x300.jpg)
![](https://www.daken.it/wp-content/uploads/2021/05/8Z7840-2-300x300.jpg)
![ISO 3834-3 Certification welding system](https://www.daken.it/wp-content/uploads/2021/05/ISO-3834-3_col.png)
Description
Aluminium tread plate toolbox with NexT Handle
- FINISHING: Aluminium tread plate
- THICKNESS: 2+1 mm
- CLOSING SYSTEM: Nylon NexT handle
- HINGES MATERIAL: Nylon
- PRODUCTION PROCESS: Laser cut, bending, TIG welding
Request info
- Models and dimensions
- Video
- Brackets
![Zen_CASSETTA_maniglia_NexT_diesgno_tecnico](https://www.daken.it/wp-content/uploads/2021/05/Zen_CASSETTA_maniglia-NexT.jpg)
Code | LxHxD external dim. (mm) | Thickness (mm) | Weight (kg) | Handles N°t | Capacity (Lt) |
8Z7800 | 400x300x300 | 2+1 | 5 | 1 | 32,4 |
8Z7810 | 500x350x400 | 2+1 | 7,2 | 1 | 63 |
8Z7820 | 600x400x500 | 2+1 | 10 | 1 | 108 |
8Z7840 | 800x500x500 | 2+1 | 14,3 | 2 | 180 |
8Z7860 | 1000x500x500 | 2+1 | 17 | 2 | 225 |
8Z7880 | 1200x500x500 | 2+1 | 22 | 2 | 270 |
Dimension (in) WxHxD | Weight (lbs) Thickness 2+1 mm | Handle n. | Capacity (gal) |
18x18x18 | 18.74 | 1 | 22.69 |
24x18x18 | 22.93 | 1 | 30.30 |
30x18x18 | 27.12 | 2 | 37.83 |
36x18x18 | 31.31 | 2 | 45.39 |
48x18x18 | 39.69 | 2 | 60.53 |
24x24x18 | 27.78 | 1 | 40.42 |
36x24x18 | 37.49 | 2 | 60.58 |
48x24x18 | 46.97 | 2 | 80.79 |
24x24x24 | 32.85 | 1 | 53.98 |
36x24x24 | 43.88 | 2 | 80.87 |
48x24x24 | 54.90 | 2 | 107.85 |
88402VERTICAL BRACKETS
Hot galvanized steel brackets
88420HORIZONTAL BRACKETS
Black epoxy-powder coated steel brackets

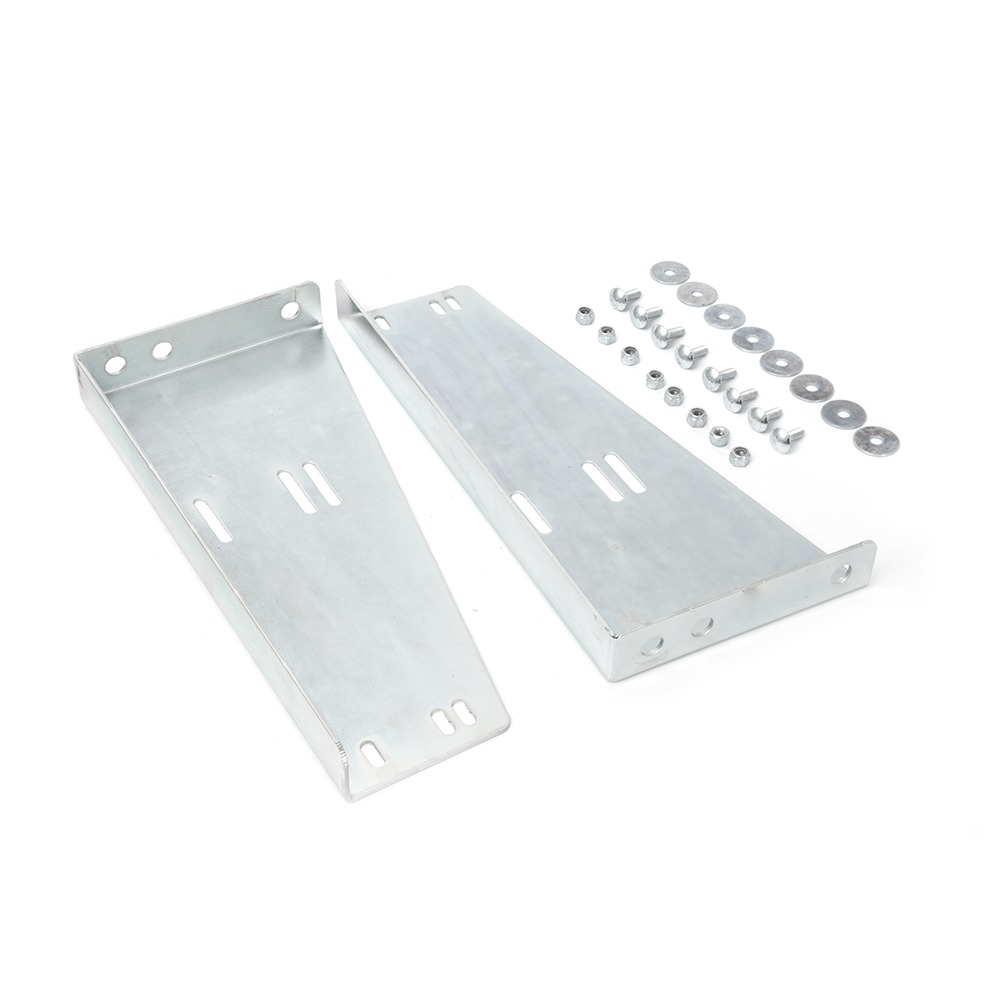

88422HORIZONTAL BRACKETS
Hot galvanized steel brackets

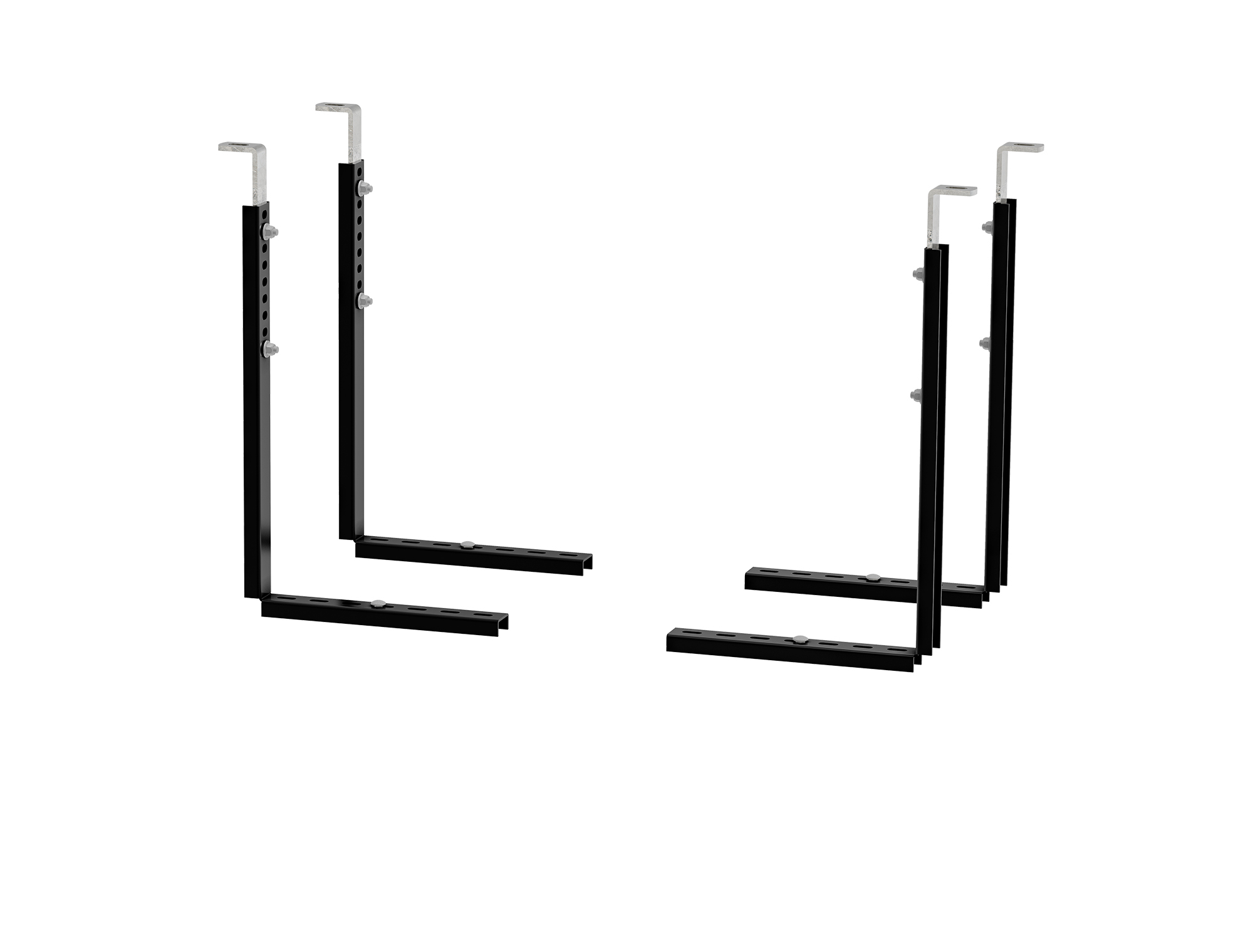

888000VERTICAL "U" BRACKETS L ≤ 750mm
Black epoxy-powder coated steel brackets

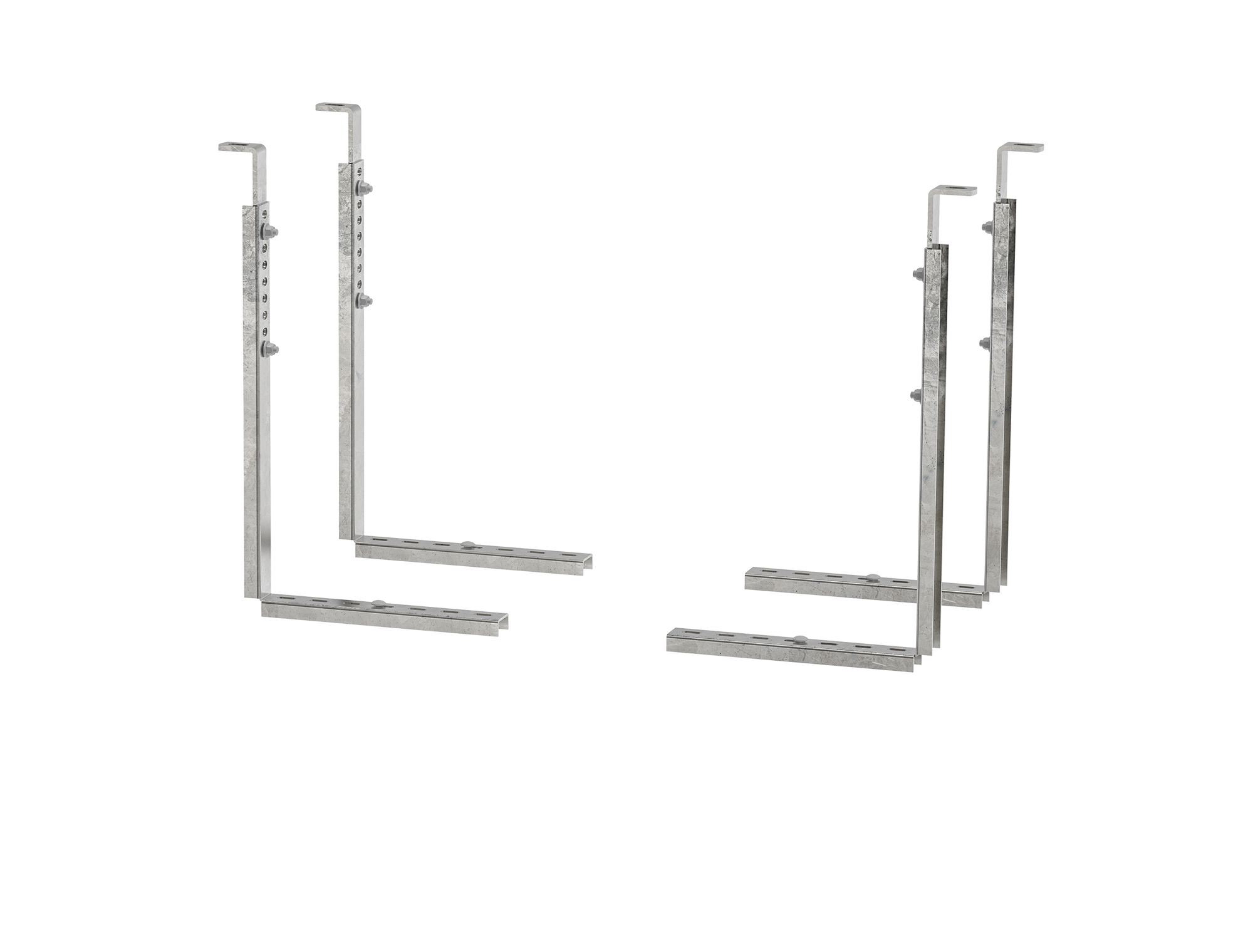

888010VERTICAL "U" BRACKETS L ≤ 750mm
Hot galvanized steel brackets

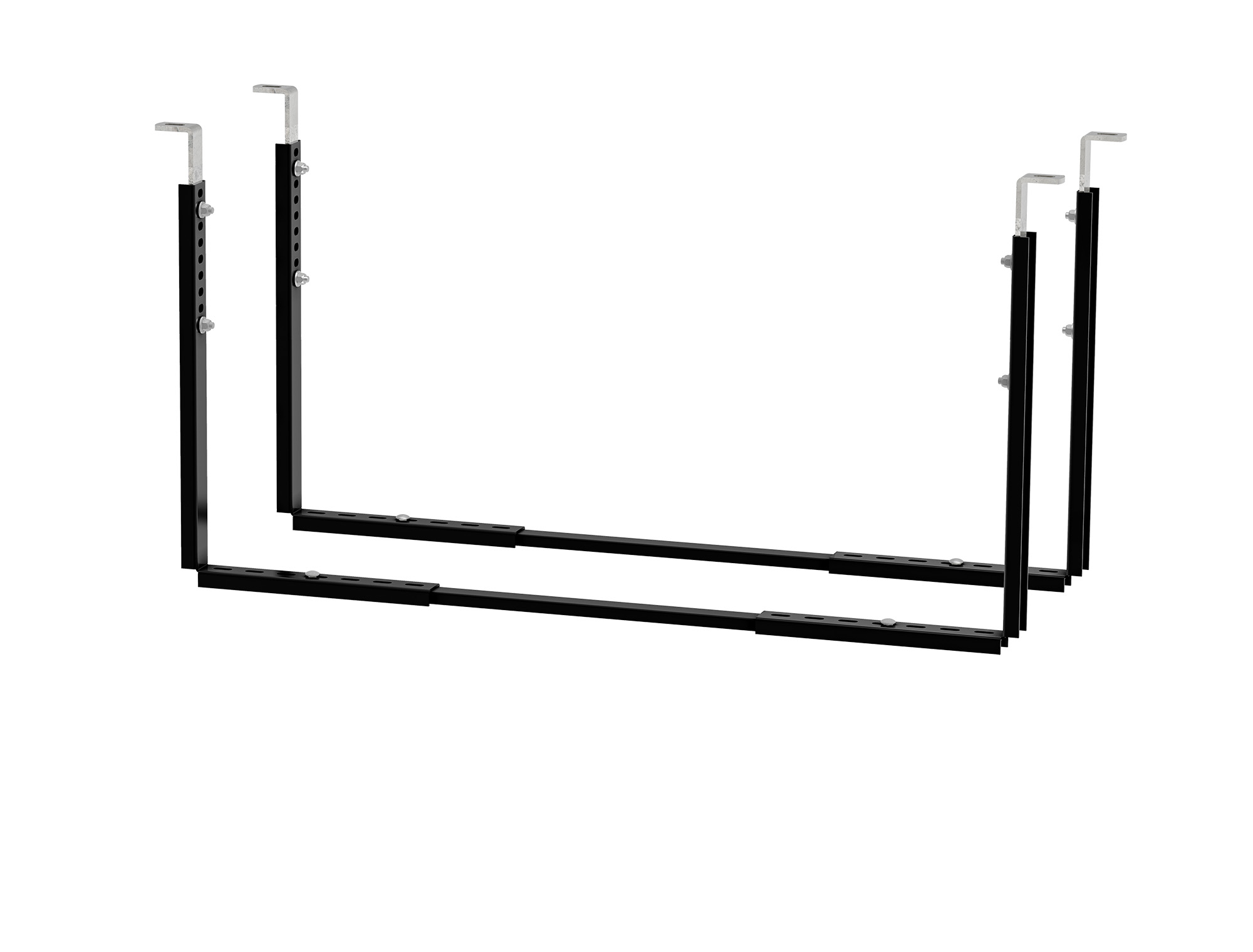

888001-888002VERTICAL "U" BRACKETS L > 750mm
Black epoxy-powder coated steel brackets

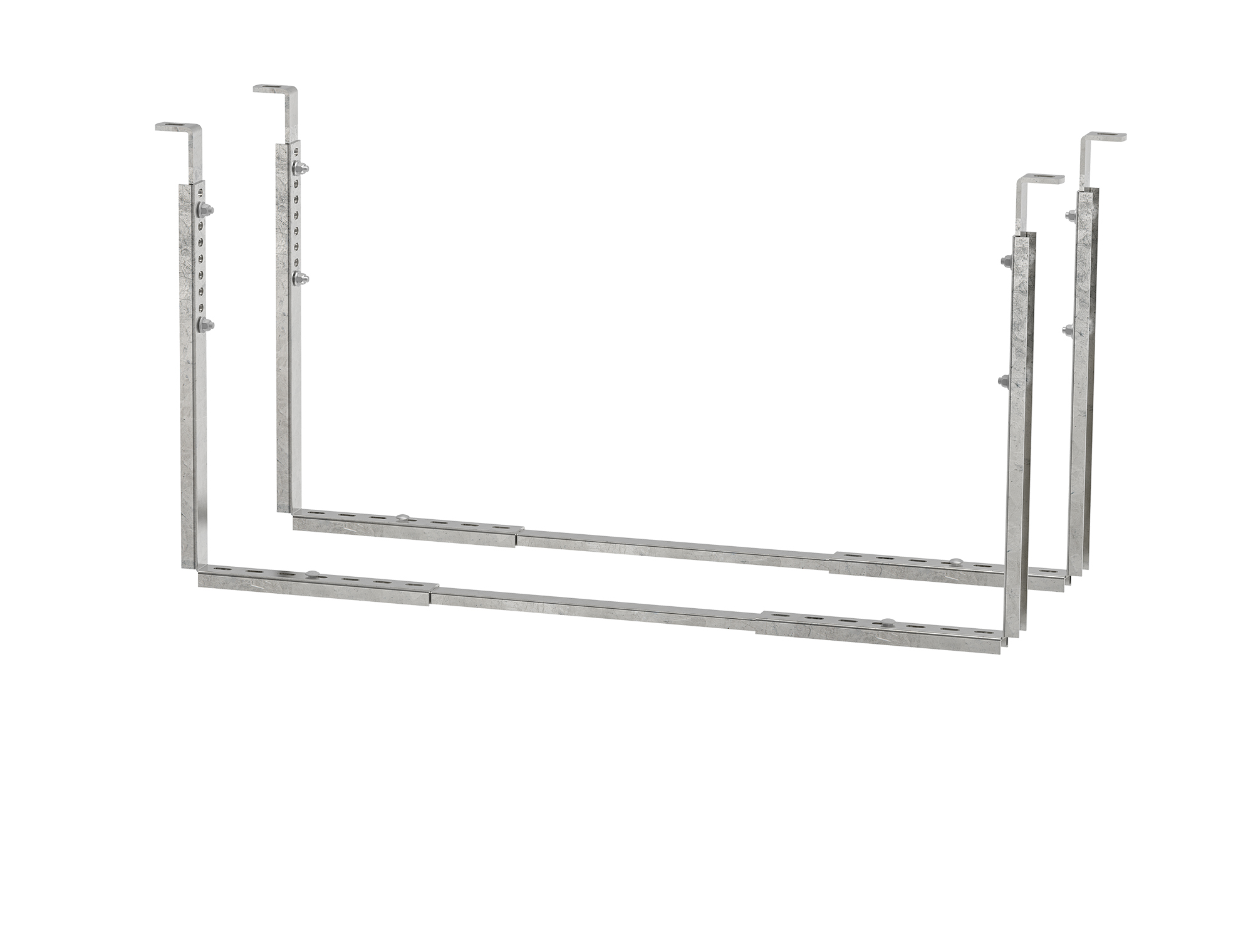

888011-888012VERTICAL "U" BRACKETS L > 750mm
Hot galvanized steel brackets

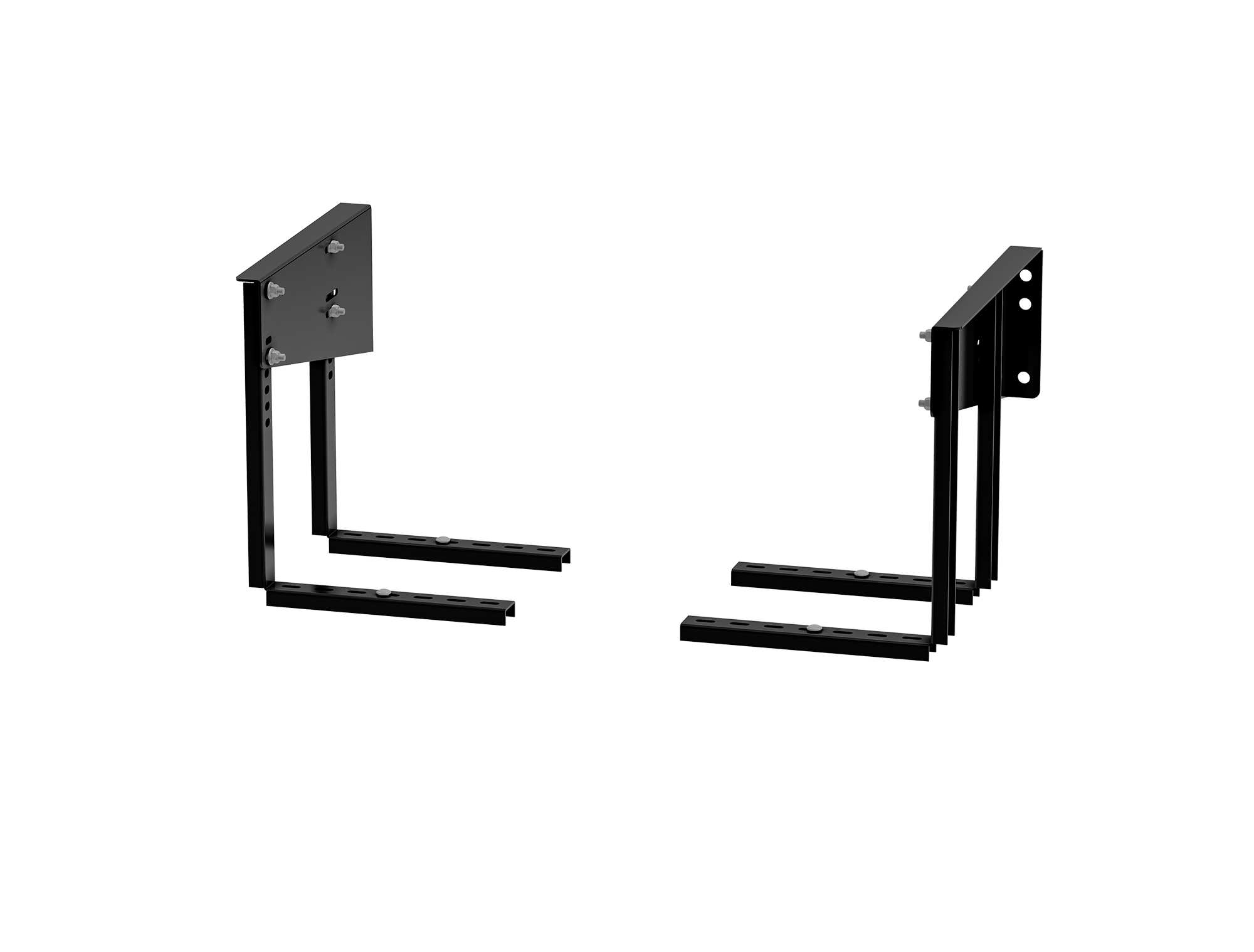

888100HORIZONTAL "U" BRACKETS L ≤ 750mm
Black epoxy-powder coated steel brackets

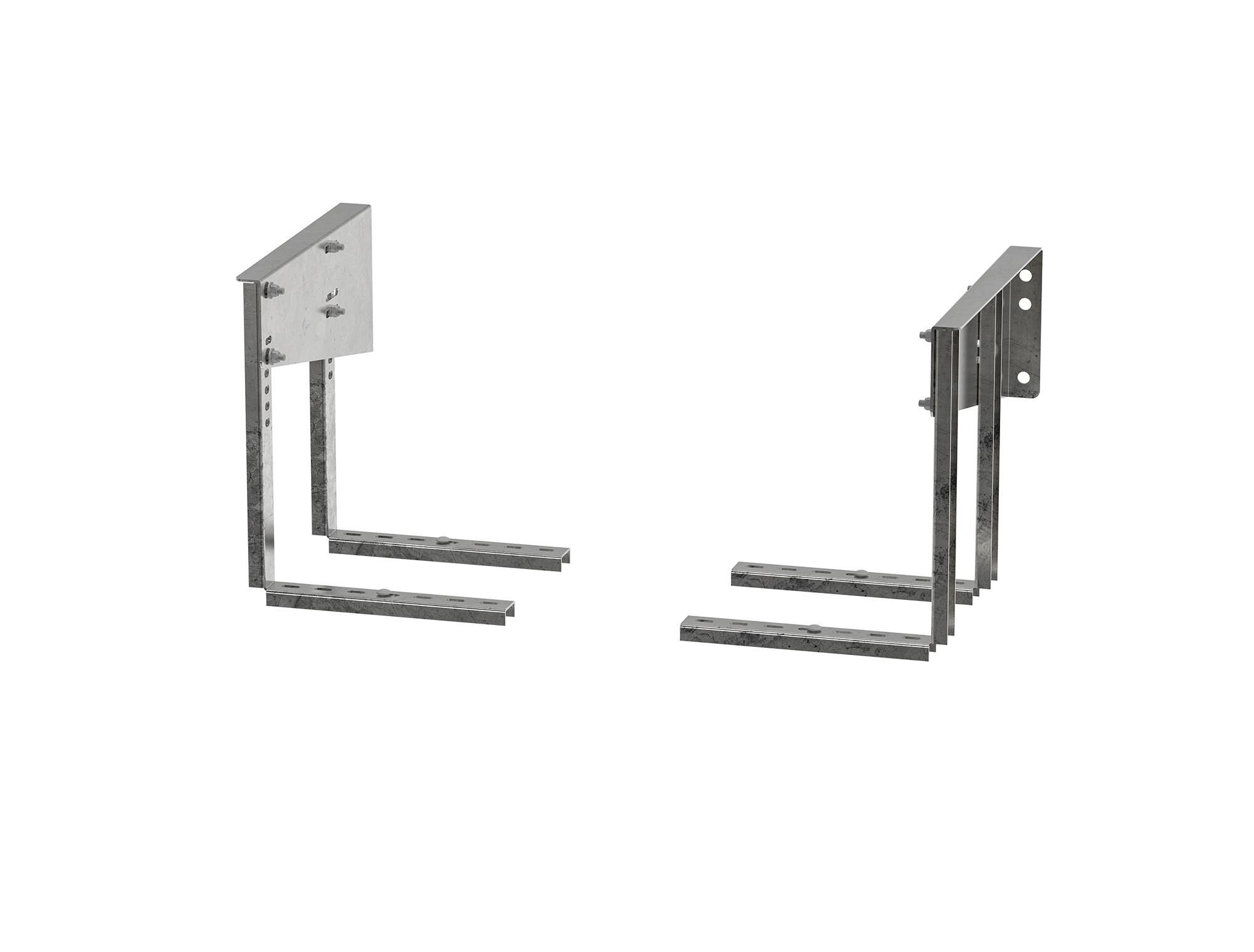

888110HORIZONTAL "U" BRACKETS L ≤ 750mm
Hot galvanized steel brackets

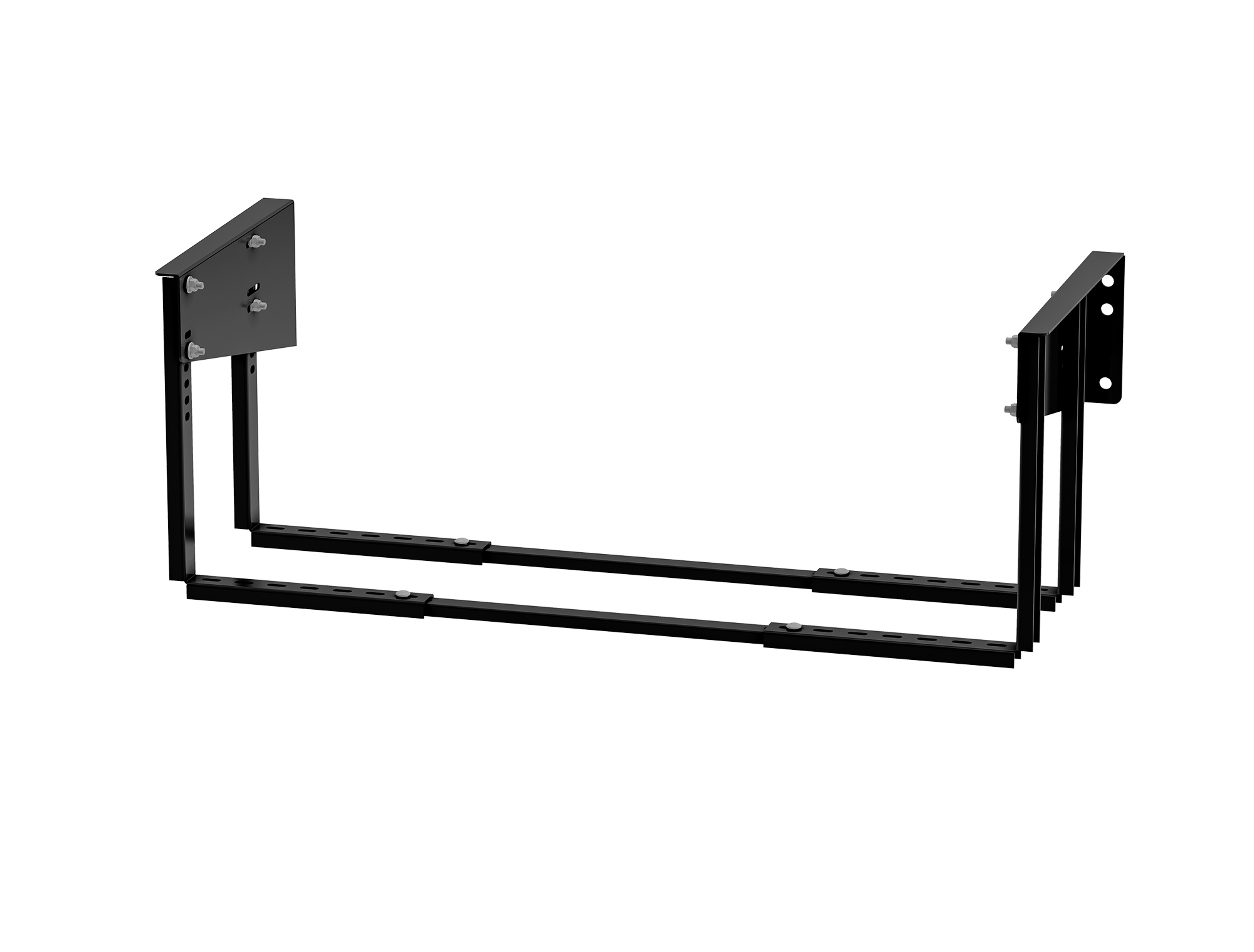

888101-888102HORIZONTAL "U" BRACKETS L > 750mm
Black epoxy-powder coated steel brackets

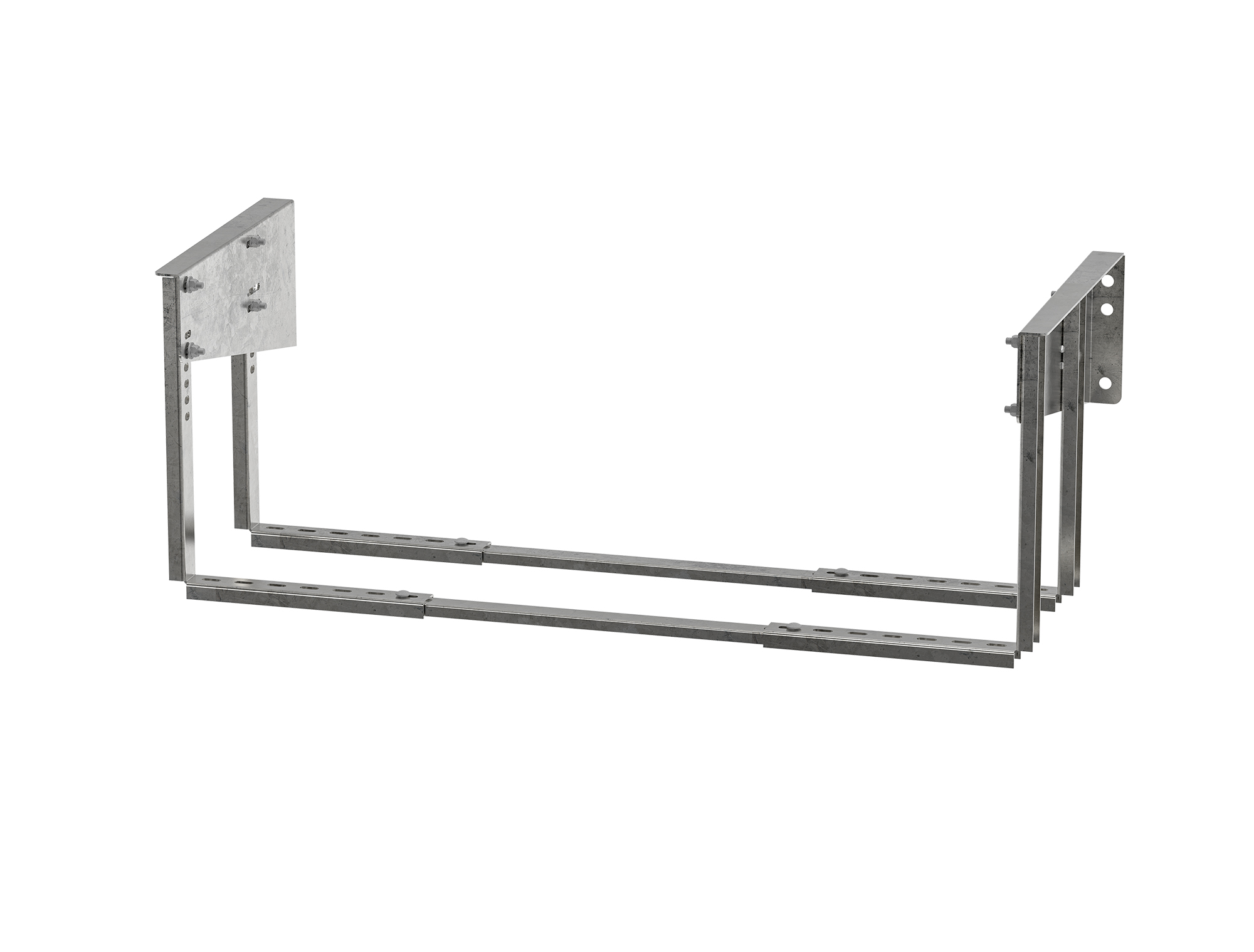

888111-888112HORIZONTAL "U" BRACKETS L > 750mm
Hot galvanized steel brackets

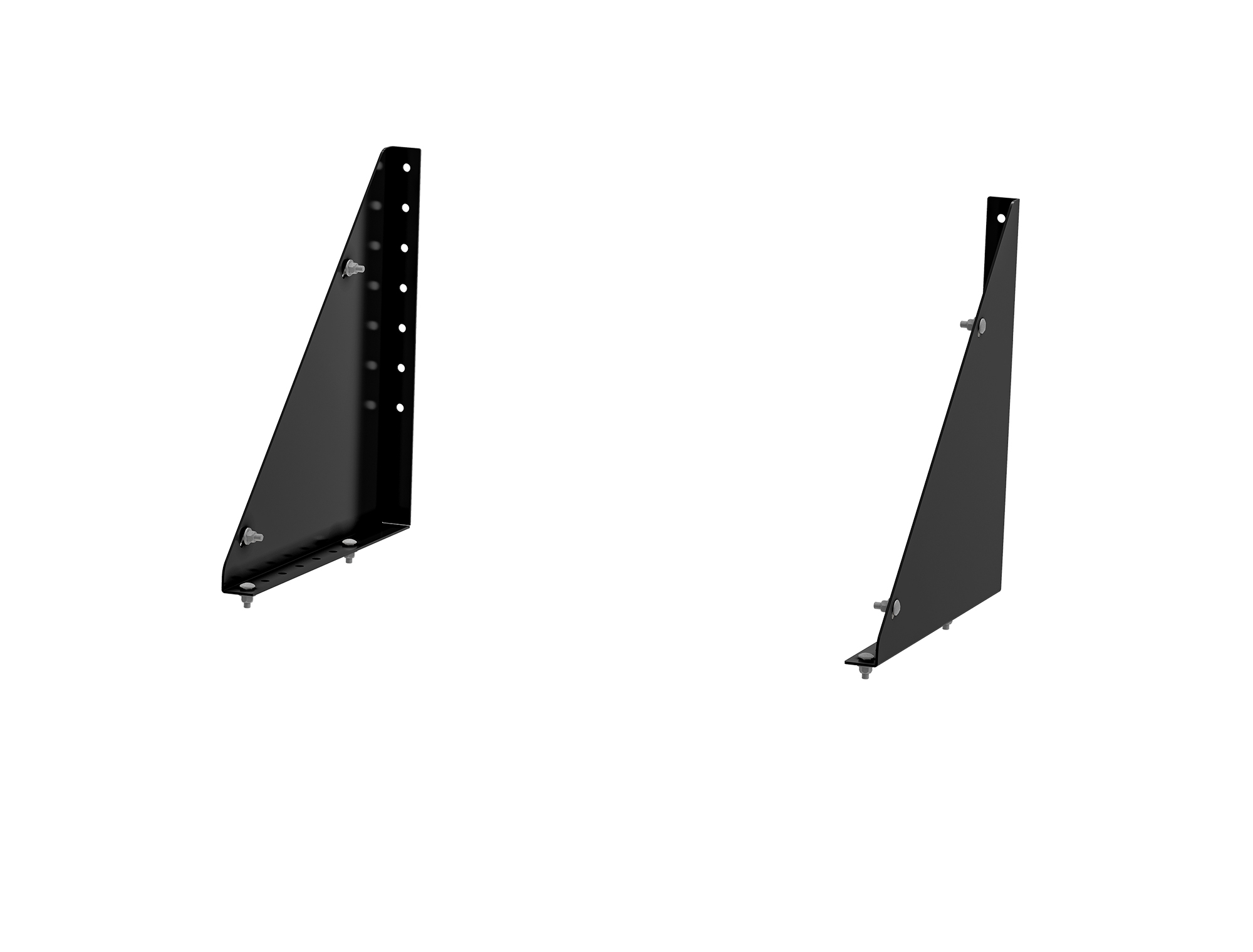

888200HORIZONTAL "U" BRACKETS L ≤ 750mm
Black epoxy-powder coated steel brackets

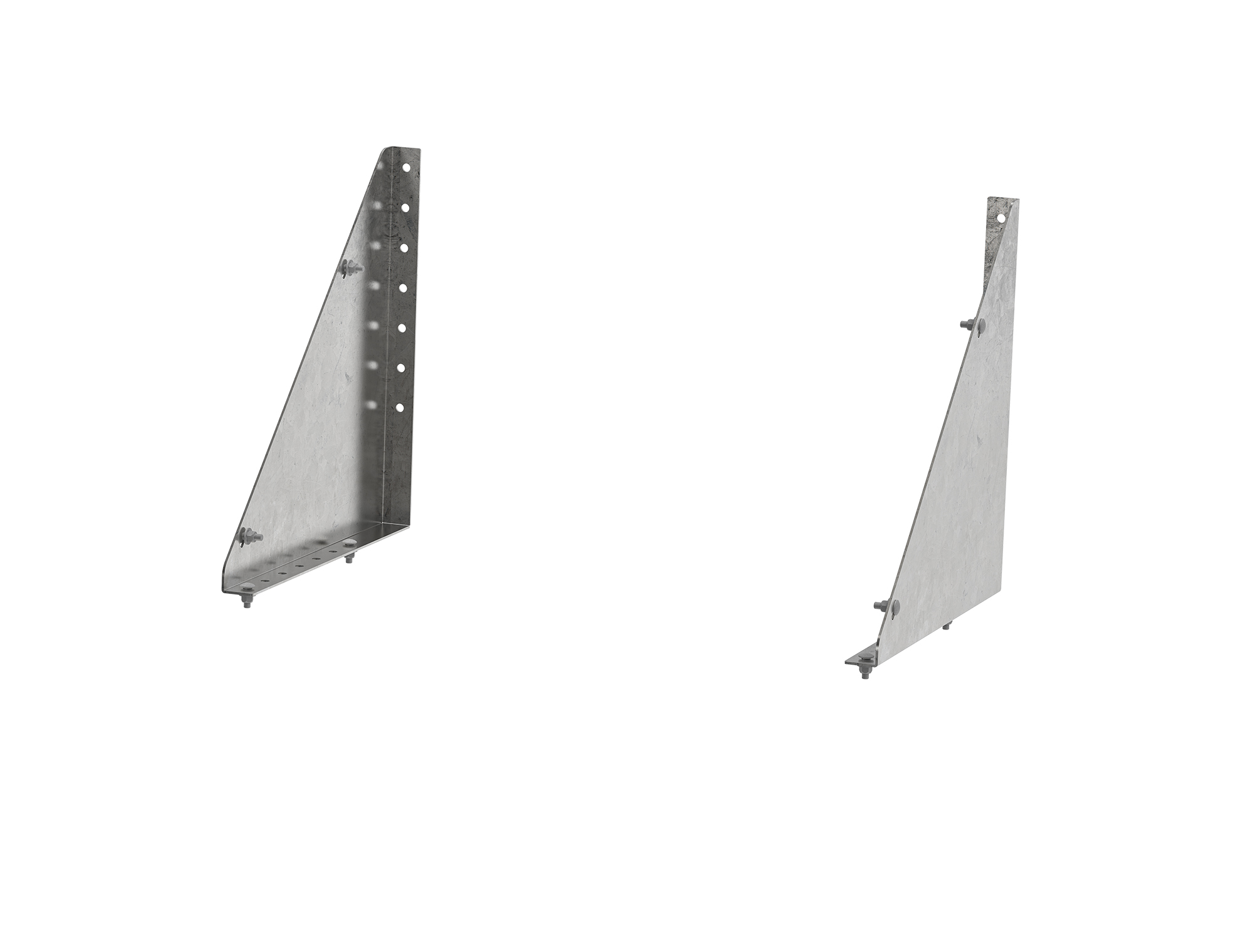

888210HORIZONTAL "U" BRACKETS L ≤ 750mm
Hot galvanized steel brackets

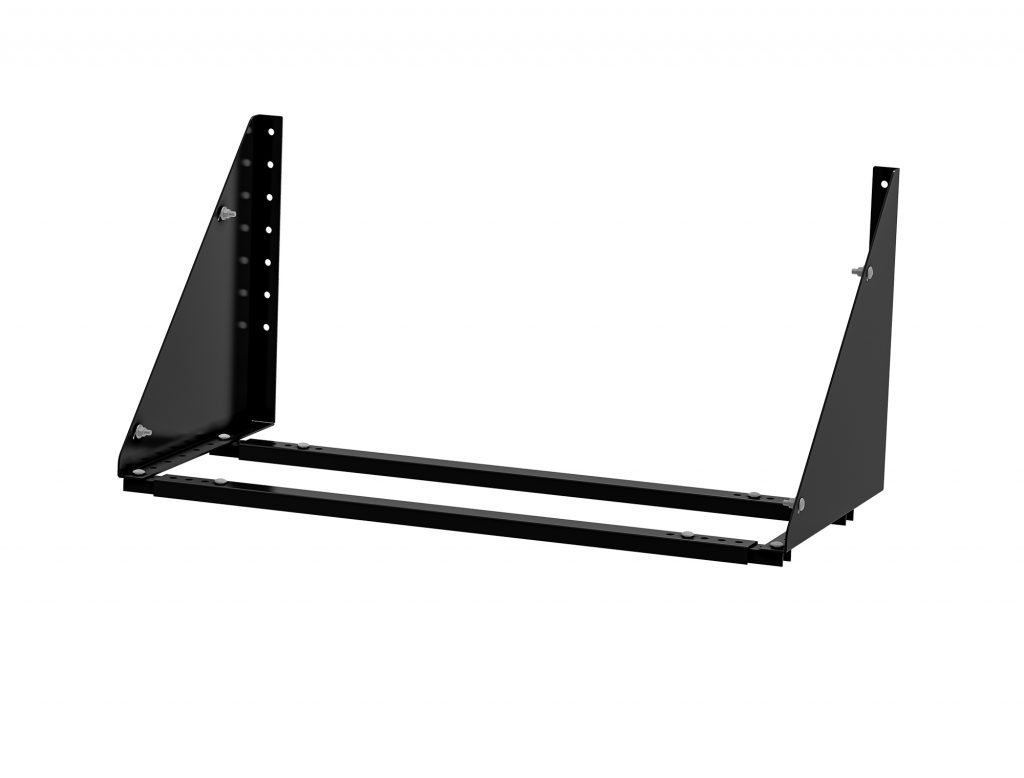

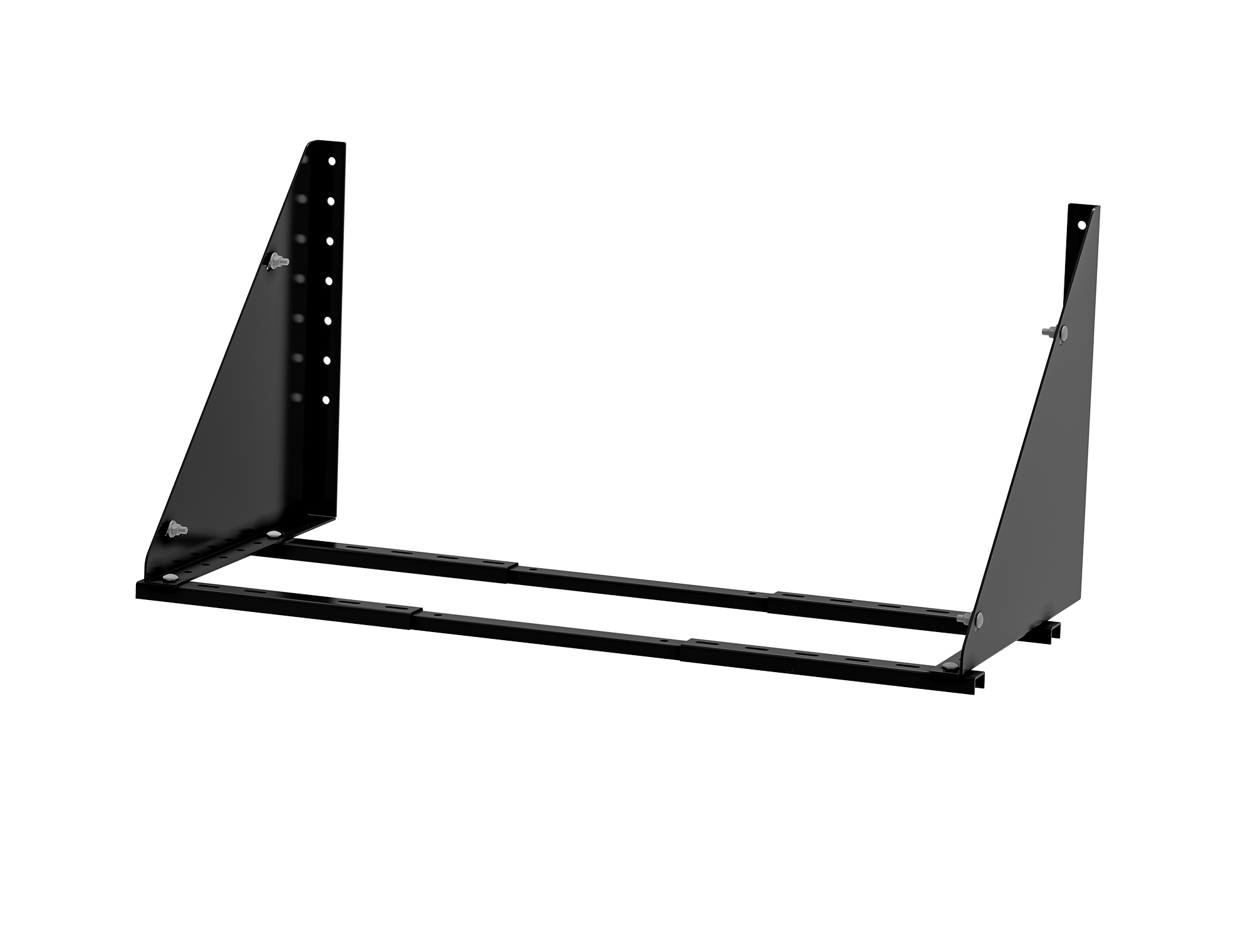

888201-888202HORIZONTAL "U" BRACKETS L > 750mm
Black epoxy-powder coated steel brackets

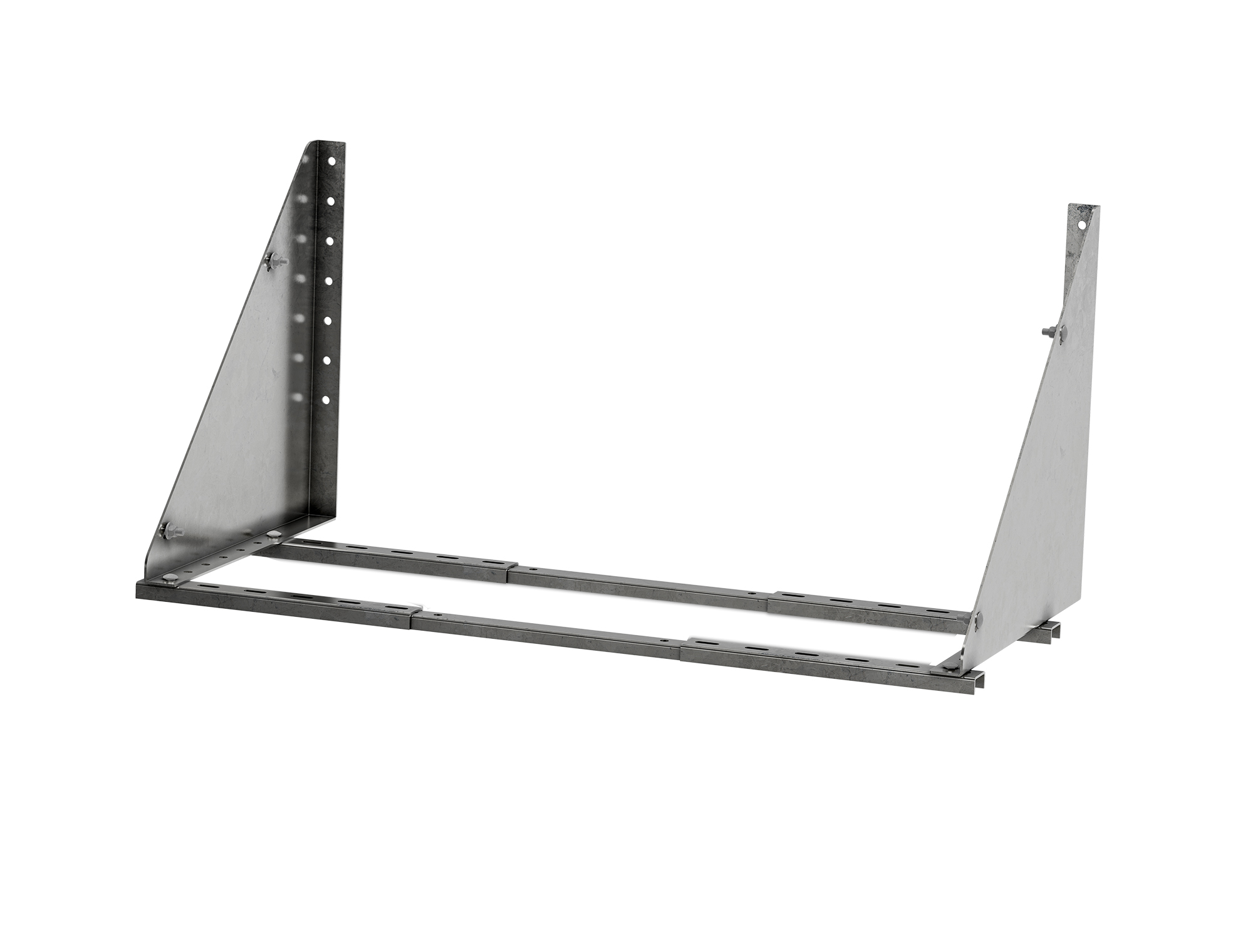

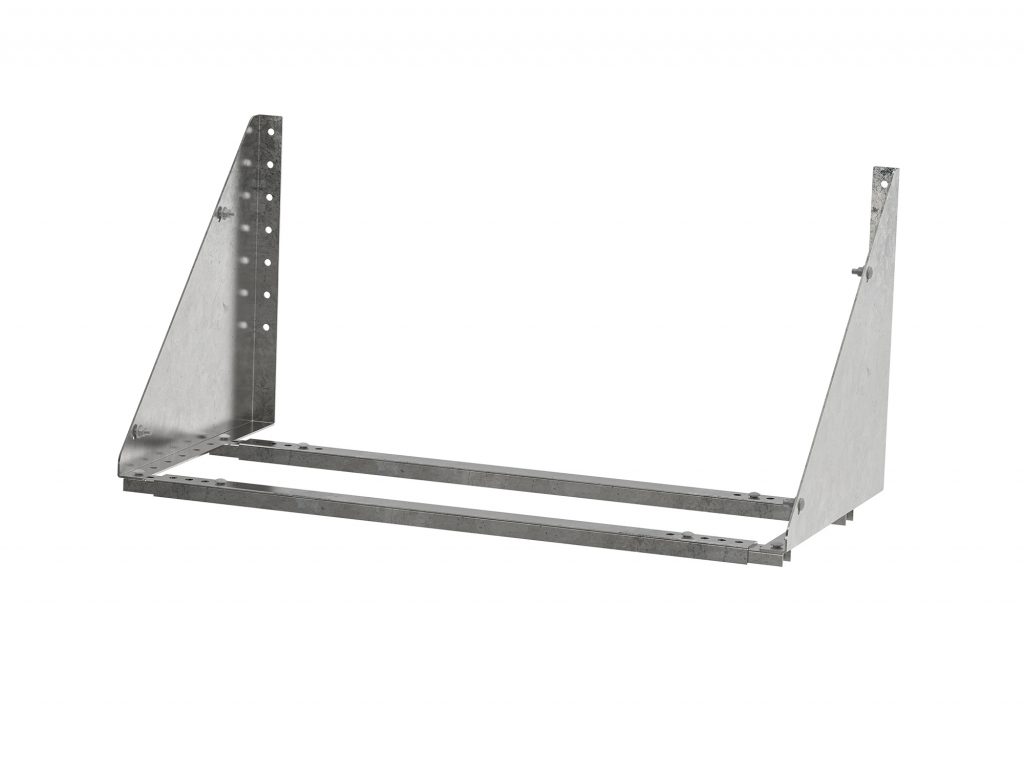

888211-888212HORIZONTAL "U" BRACKETS L > 750mm
Hot galvanized steel brackets
Configure your product
- Dimensions, Thickness and Quantity
- Handle
- Opening position
- Hinges
- Optionals
- Brackets
Dimensions, Thickness and Quantity
Handle
![](https://www.daken.it/wp-content/uploads/2021/04/Maniglia-NexT-inox_-1024x1024.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/Maniglia-NexT-plastica-1024x1024.jpg)

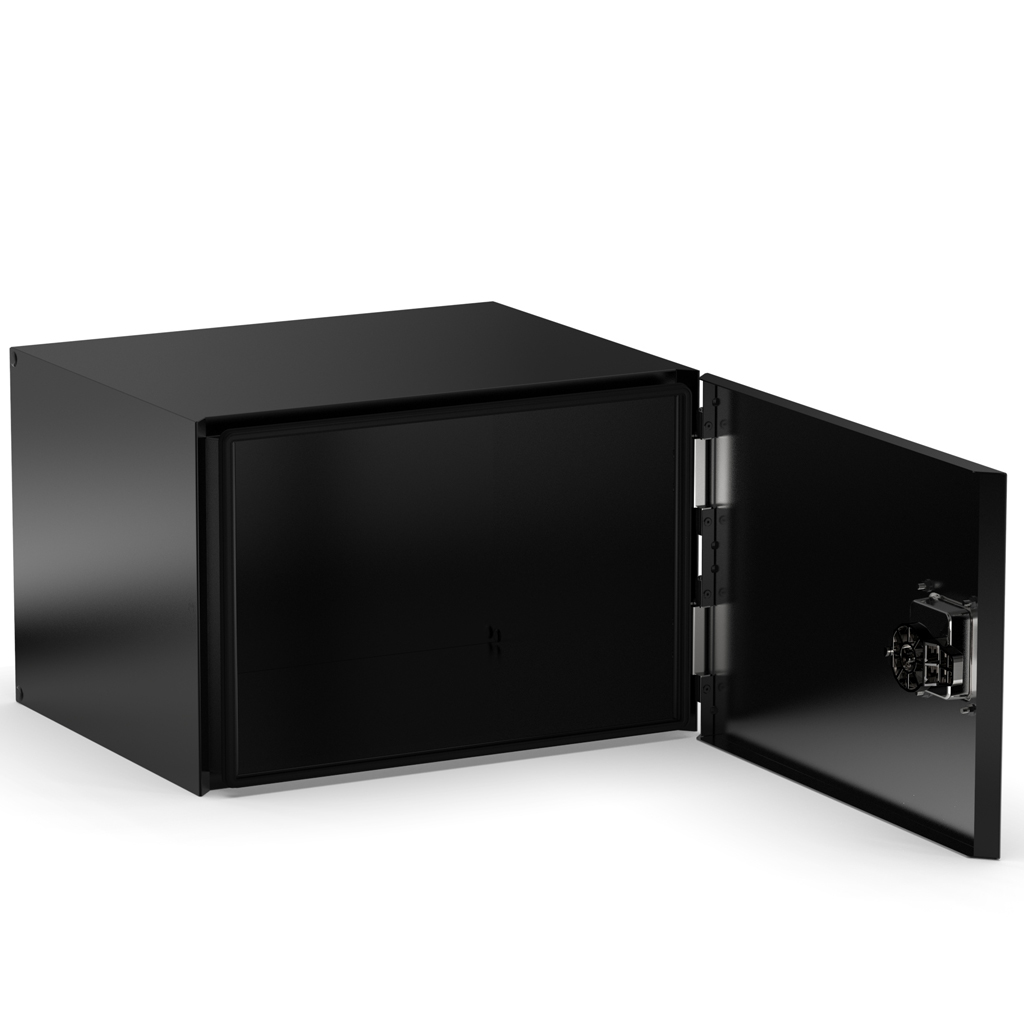

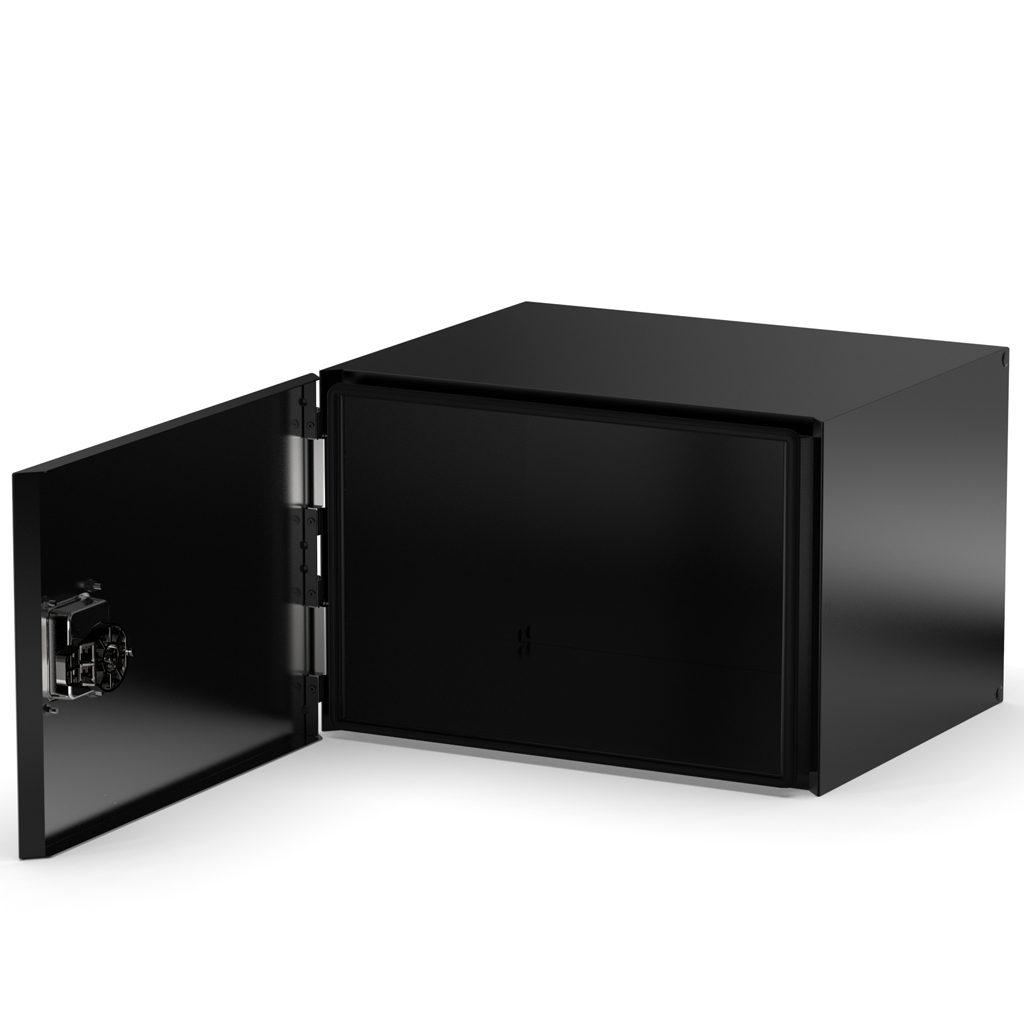

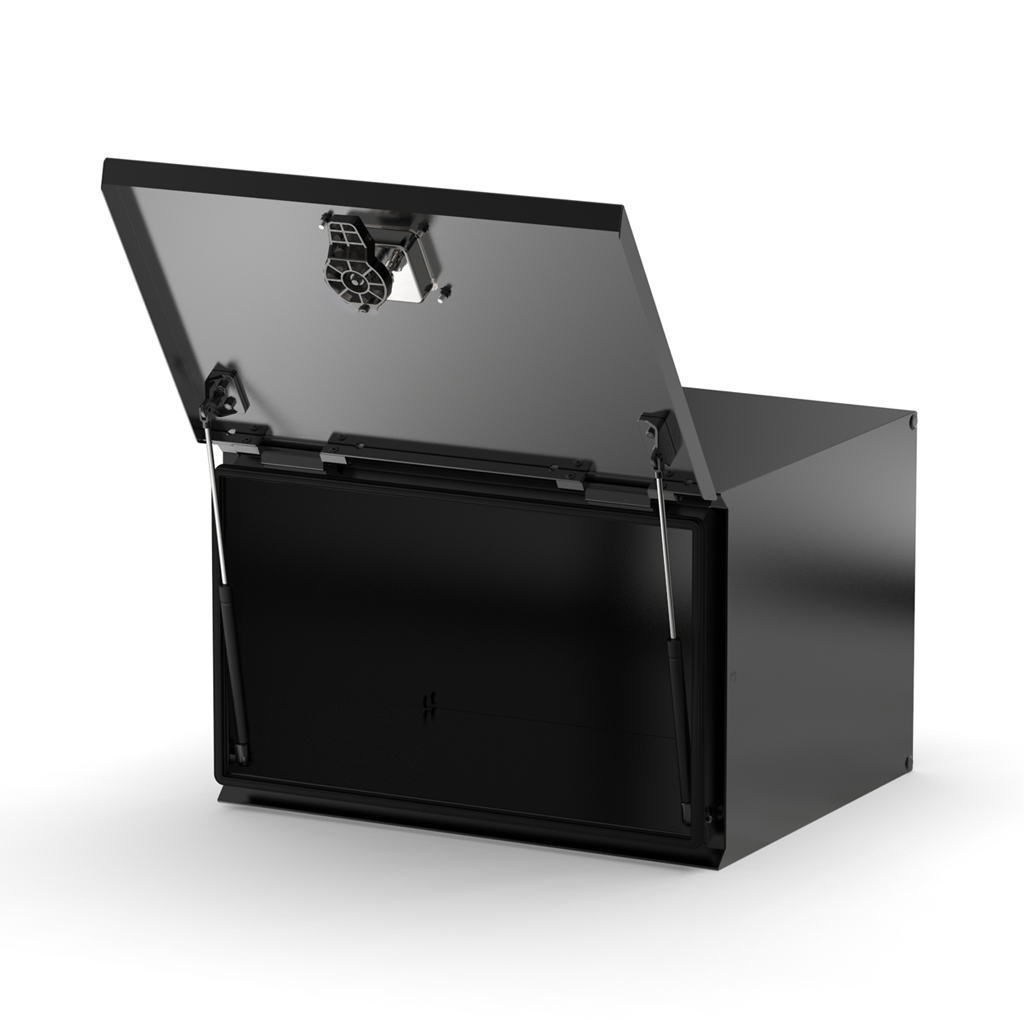

Opening position
![](https://www.daken.it/wp-content/uploads/2021/05/Apertura-verso-lalto.jpg)
![](https://www.daken.it/wp-content/uploads/2021/05/Apertura-verso-il-basso.jpg)
![](https://www.daken.it/wp-content/uploads/2021/05/A-bandiera_maniglia-sx.jpg)
![](https://www.daken.it/wp-content/uploads/2021/05/A-bandiera_maniglia-a-dx.jpg)
Hinges
![](https://www.daken.it/wp-content/uploads/2021/04/Cerniere-alluminio-1024x1024.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/cerniere-nylon_optionals-1024x1024.jpg)

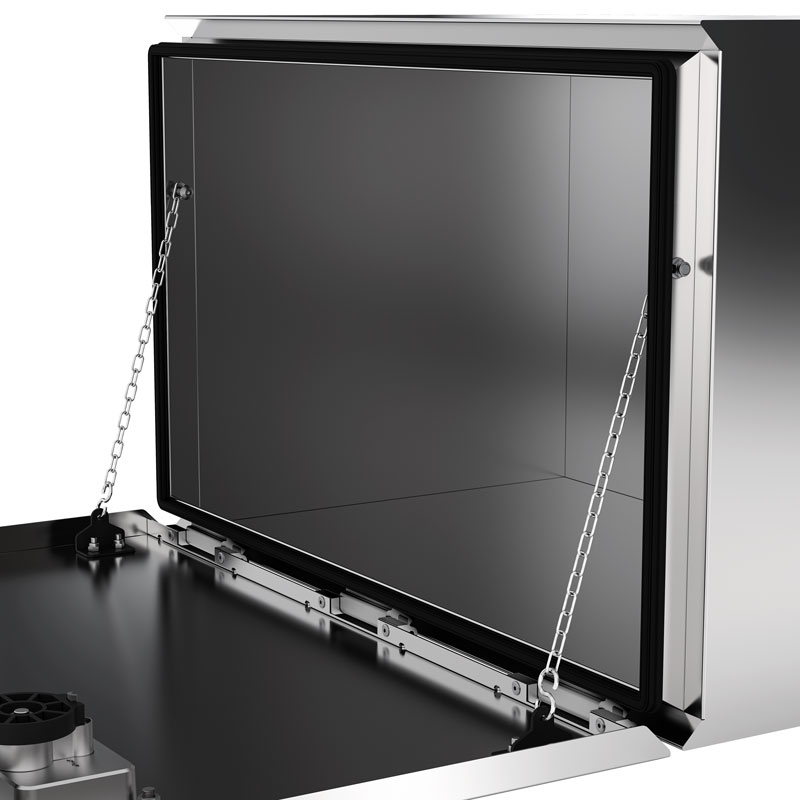

Optionals
![](https://www.daken.it/wp-content/uploads/2021/04/Pistoni.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/cavo-optionals.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/catenella.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/kit-ripiani-e-divisori_-1024x1024.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/cassetto.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/tappetino.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/kit-luci-e1648797248643.jpg)
![](https://www.daken.it/wp-content/uploads/2021/04/aeratore.jpg)

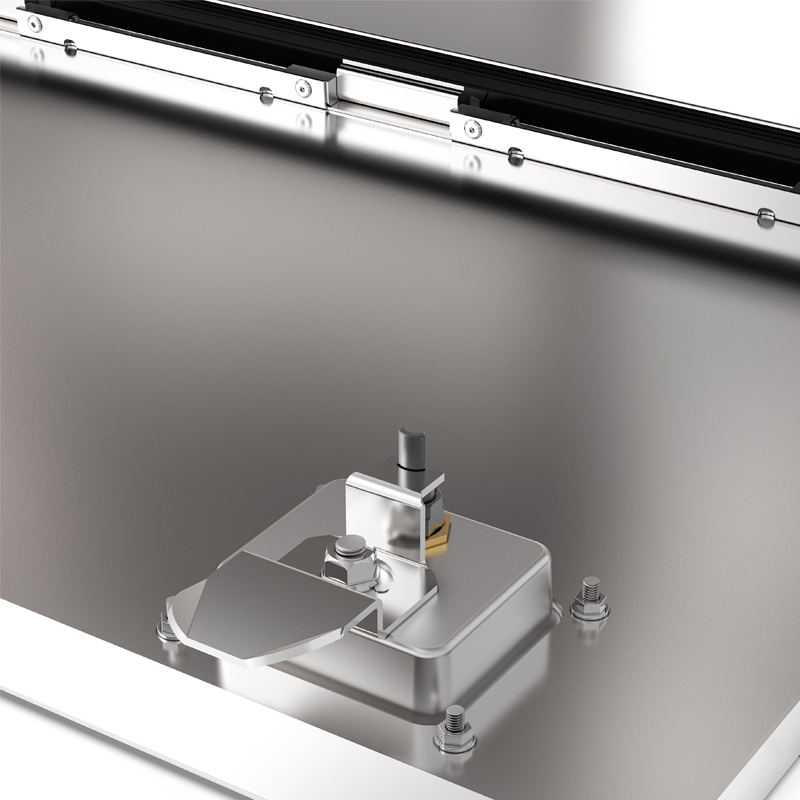

![](https://www.daken.it/wp-content/uploads/2021/05/Focus-full-metal.jpg)
