Z18-Z28-Z38

Toolbox for trucks

Z18-Z28-Z38

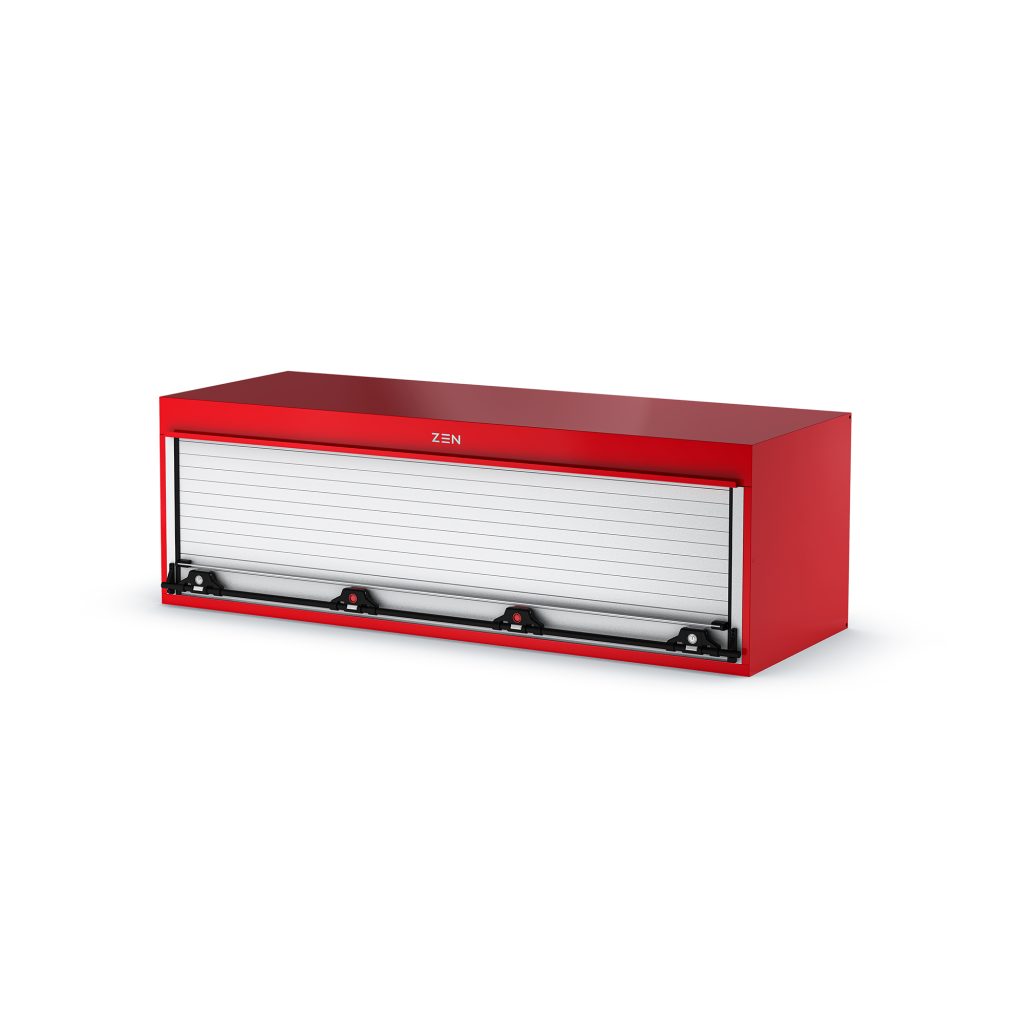

Steel toolbox with an aluminum roll-up door

Daken steel toolbox with a roller shutter and an aluminum handle profile, designed to ensure quick and easy opening.

Available in a variety of finishes.

Product Features

  • Manufacturing process: laser cutting, bending, TIG welding
  • Finishes:
    1. AISI 304 BA polished stainless steel
    2. AISI 304 2B matte stainless steel
    3. electrogalvanized steel with a black epoxy powder coating
  • Thickness: 1.5 mm
  • Closing:
    • Sliding gate with built-in handle profile, made of anodized aluminum
    • Anodized aluminum side rails
    • Lock Cylinder



The entire Daken ZEN stainless steel line is highly customizable in terms of dimensions, thicknesses, and finishes, with the option to create Special Projects!

Features

VIBRATION RESISTANCE

IMPACT RESISTANCE

Approvals
Certifications

Models and sizes. Find the size that's right for you.

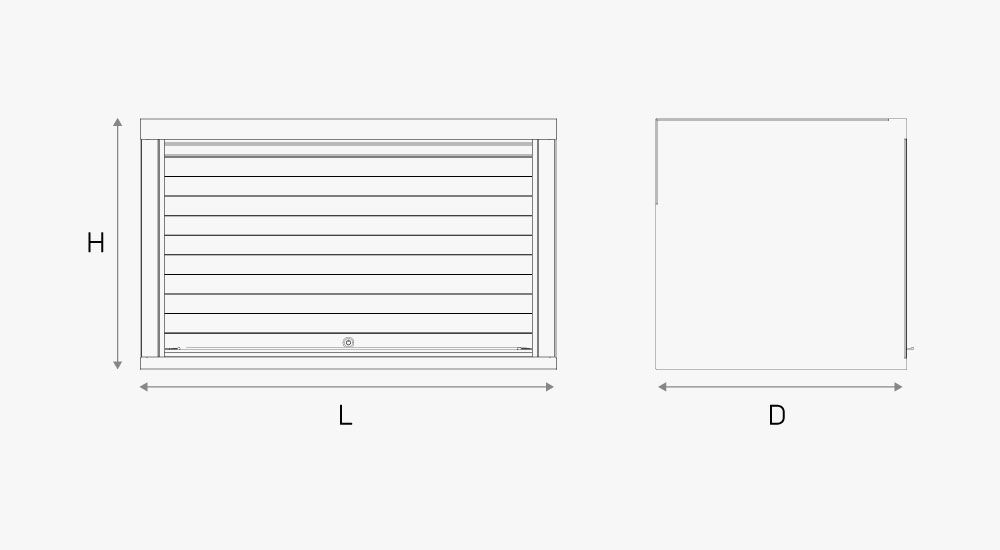

Code LxHxD external dim. (mm) Thickness (mm) Weight (kg) Capacity (L)
8Z1820 600x400x500 1,5 21 108
8Z1840 800x500x500 1,5 26 180
8Z1860 1000x500x500 1,5 32 225

Mounting brackets.
Designed and manufactured in Daken.

888211-888212

HORIZONTAL “U”-SHAPED BRACKETS – L >, 750 mm

Hot-dip galvanized steel brackets

888201-888202

HORIZONTAL "U" BRACKETS, L >, 750 mm

Black powder-coated steel brackets

888210

HORIZONTAL "U" BRACKETS, L >, 750 mm

Hot-dip galvanized steel brackets

888200

HORIZONTAL "U" BRACKETS L ≤ 750 mm

Black powder-coated steel brackets

Optionals.
Customize your product.

FAQ.
Do you have any questions? Let's start by giving you some answers

ZEN is Daken’s line of metal toolboxes for trucks, trailers, and semi-trailers. It includes models made of stainless steel and aluminum, available in various finishes, thicknesses, and locking systems. Manufactured to IATF standards and using a welding process compliant with ISO 3834, ZEN toolboxes provide IP5K9K-rated protection against water and dust and undergo vibration testing equivalent to one million kilometers under full load. The line is also certified in accordance with UNECE Regulation R73 for use in side protection systems (certification E57 73 R – 010017). ZEN boxes combine design, durability, and load protection and can be customized in terms of dimensions, materials, handles, and finishes to meet specific installation and usage requirements.

Yes, welding processes are managed in accordance with the requirements of the UNI EN ISO 3834 standard, which defines quality standards for the welding of metallic materials and the control of the production process.

This standard ensures that production is carried out using controlled procedures, qualified personnel, and quality control systems throughout the entire production cycle.

Contact your Daken representative or submit a request through our website at www.daken.it—we’ll get back to you with all the information you need!
